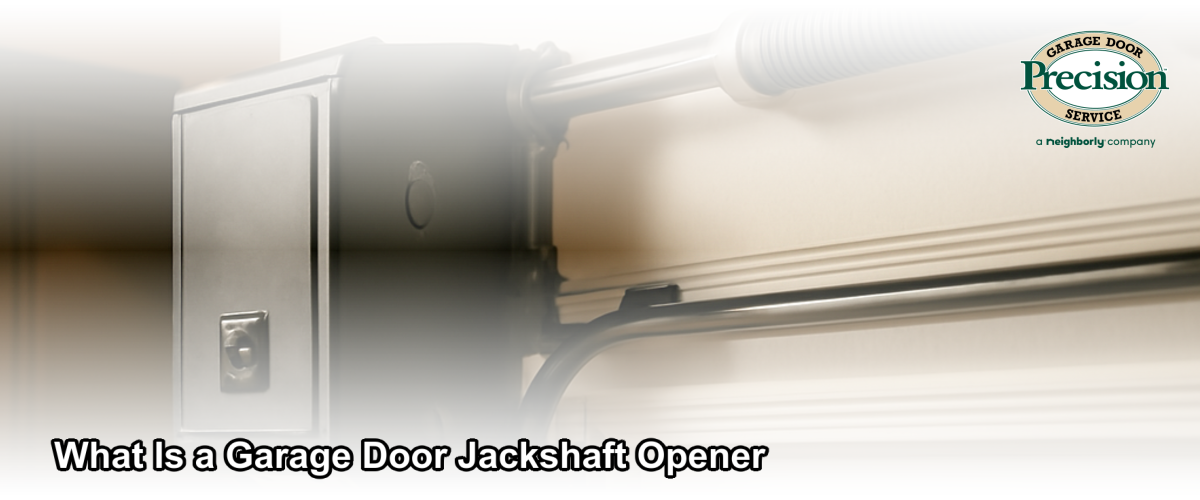

What is a jackshaft garage door opener?
A jackshaft garage door opener — also called a wall-mount opener — is a motorized unit that mounts directly to the wall beside the torsion bar rather than hanging from a trolley rail on the ceiling. Instead of pulling a carriage along a track, it drives the torsion shaft that the spring and cable drum are already attached to, rotating it to raise and lower the door. The result is a completely ceiling-clear installation with no overhead rail at all.
Because the drive mechanism sits on the wall, jackshaft openers are the go-to solution for garages with low, sloped, or obstructed ceilings — a situation that comes up constantly in Chicago’s older bungalows, coach houses, and vintage two-flats.
How does a jackshaft opener work differently from a traditional opener?
A standard chain-, belt-, or screw-drive opener hangs from the ceiling and pushes or pulls a trolley that physically moves a carriage arm connected to the door. A jackshaft opener instead mounts beside the torsion tube and uses a DC motor to spin the torsion shaft directly, which winds or unwinds the cables that lift the door panels.
This side-drive design means the opener is doing its work at the horizontal torsion bar level — roughly at eye height on the garage wall — rather than 7 to 9 feet overhead. It is mechanically simpler in terms of overhead components, puts less wear on the ceiling structure, and runs very quietly because it doesn’t vibrate a long aluminum rail.
What are the advantages of a jackshaft opener for Chicago homeowners?
The biggest advantage is headroom savings: jackshaft openers typically require as little as 2 inches of clearance above the fully open door, compared to the 10 to 12 inches of overhead rail space a traditional opener needs. For the thousands of Chicago garages built before modern ceiling height standards — especially in neighborhoods like Logan Square, Pilsen, Bridgeport, and Irving Park — that difference can mean the only working automated opener option is a jackshaft.
Additional advantages include:
- Quieter operation — no rail vibration transmitting through a ceiling that may be directly below a bedroom or living space.
- Ceiling flexibility — works with cathedral, sloped, or vaulted garage ceilings where a rail simply cannot be anchored.
- Cleaner aesthetic — the ceiling stays completely open, which matters if you use overhead storage, a car lift, or a finished garage ceiling.
- Spring integration — because the opener connects directly to the torsion system, it works in harmony with the spring rather than fighting against it, which can extend component life.
Are there any disadvantages or limitations to jackshaft openers?
Jackshaft openers only work with sectional doors mounted on a torsion spring system — they are not compatible with one-piece tilt-up doors, side-hinged doors, or doors that use extension springs instead of torsion springs. If your garage currently has extension springs on either side of the tracks rather than a single horizontal bar above the door, a jackshaft installation would require a spring conversion first.
They also carry a higher upfront cost than a basic chain-drive opener (see pricing below), and because the motor is at wall height rather than ceiling height, some homeowners in very tight garages need to confirm there is adequate wall clearance beside the torsion tube for the motor housing. An IDA Certified Technician from Precision Garage Door Chicago can assess your specific setup before any equipment is ordered.
How much does a jackshaft garage door opener cost in Chicago?
In the Chicago market, a jackshaft opener installed by a professional typically ranges from $500 to $900 or more depending on the brand, motor size, and whether your existing torsion spring setup requires any modification. The LiftMaster 8500W — one of the most widely installed jackshaft units — typically lands in the $600 to $800 installed range for a standard single-car door.
By comparison, a professional chain-drive opener installation in Chicago usually runs $250 to $450, and a belt-drive installation runs $350 to $550. The premium for a jackshaft reflects the more complex wall-mount installation, the higher-grade DC motor, and in many cases the battery backup system that comes standard on modern jackshaft units.
What hidden costs or extras should I expect with a jackshaft opener installation?
Homeowners in Chicago should budget for a few potential add-ons beyond the base opener price. If your garage has extension springs rather than torsion springs, a spring conversion can add $150 to $300 to the project. Older doors that are out of balance or have worn cables may need service before the opener can be installed safely — catching those issues at installation time is far cheaper than an emergency call later.
Most professional jackshaft installations also include wiring to a new wall button and a keypad, but confirm whether wireless keypads, additional remotes, or smart-home integration modules (like myQ connectivity) are included or sold separately. Precision Garage Door Chicago’s IDA Certified Technicians review these variables with homeowners before beginning any installation so there are no surprises on the final invoice.
Is a jackshaft opener a DIY project or does it need a professional?
Jackshaft opener installation is not a recommended DIY project for most homeowners. The work involves direct contact with a loaded torsion spring system — one of the most mechanically dangerous components in a residential garage — as well as 120V electrical wiring and precise torque settings on the drive mechanism. A misconfigured jackshaft can put serious stress on the torsion bar or drum cables, leading to a door that falls out of balance or fails abruptly.
Professional installation by IDA Certified Technicians, like those at Precision Garage Door Chicago, ensures the opener is calibrated to your specific door weight, spring tension, and travel limits. This is also typically required to keep the manufacturer’s warranty valid. As covered in our full guide to garage door opener types, correct calibration at installation is the single biggest factor in long-term opener reliability.
How do I know if my Chicago garage is compatible with a jackshaft opener?
The two non-negotiable requirements are a sectional door and a torsion spring system. Beyond that, your door needs to be in reasonably good mechanical condition — balanced, with functioning cables and rollers — because a jackshaft opener driving an unbalanced door will strain the motor and wear out prematurely. Most single-car and double-car sectional doors in Chicago are good candidates.
The easiest way to confirm compatibility is a professional assessment. Precision Garage Door Chicago serves homeowners throughout Chicago and the surrounding area, and an IDA Certified Technician can evaluate your headroom, spring type, door weight, and wall clearance in a single visit — giving you an exact recommendation rather than a guess.
This guide was prepared by Precision Garage Door Chicago’s IDA Certified Technicians, serving Chicago, IL and the greater Chicagoland area.
Frequently Asked Questions
Can a jackshaft opener be installed on any garage door?
No — jackshaft openers only work with sectional doors that use a torsion spring system. Doors with extension springs, one-piece tilt-up panels, or side-hinged designs are not compatible without significant modification.
How much headroom does a jackshaft opener require?
Most jackshaft openers require as little as 2 inches of clearance above the fully open door, compared to the 10 to 12 inches needed by a standard overhead rail opener — making them the top choice for low-ceiling Chicago garages.
Are jackshaft openers quieter than traditional garage door openers?
Yes. Because there is no ceiling-mounted rail to vibrate, jackshaft openers run significantly quieter, which is especially noticeable in garages below living spaces — common in Chicago bungalows and two-flats.
What does a jackshaft opener installation cost in Chicago?
Professionally installed jackshaft openers in Chicago typically run $500 to $900 or more depending on the model and whether a torsion spring conversion is needed. A basic chain-drive opener installation, by comparison, usually costs $250 to $450.
Do I need a professional to install a jackshaft garage door opener?
Yes. Jackshaft installation involves a loaded torsion spring system and 120V wiring, and improper setup can damage the door or void the manufacturer’s warranty. IDA Certified Technicians at Precision Garage Door Chicago handle calibration, wiring, and safety testing as part of every installation.
