What are garage door bearings and what do they do?
Garage door bearings are small but critical components — typically steel ball-bearing races or nylon-cored plates — that allow the torsion spring shaft to rotate smoothly as your door opens and closes. Without functioning bearings, the metal shaft grinds directly against its bracket, creating friction that accelerates wear across your entire spring system.
Most residential garage doors use two end bearing plates and one or two center bearing plates depending on the door width. Each one takes on thousands of cycles per year, making them one of the higher-wear parts in the system. For a deeper look at how bearings fit into the full spring assembly, see our guide to garage door torsion spring systems.
What does a failing garage door bearing sound like?
A grinding, scraping, or metal-on-metal squealing noise when your garage door moves up or down is the most reliable early warning sign that a bearing is failing. This sound is distinct from a spring squeak — it tends to persist throughout the full travel of the door rather than occurring only at a specific point.
You may also hear a rhythmic popping or clicking that syncs with the rotation of the shaft. If the noise gets noticeably louder in winter, that is not a coincidence: Chicago’s freezing temperatures cause metal to contract and grease to thicken, both of which put extra stress on already-worn bearings. Ignoring these sounds typically means the bearing seizes entirely — at which point the shaft, drums, or cable system can sustain secondary damage that significantly increases repair costs.
What are the visual signs that garage door bearings are worn out?

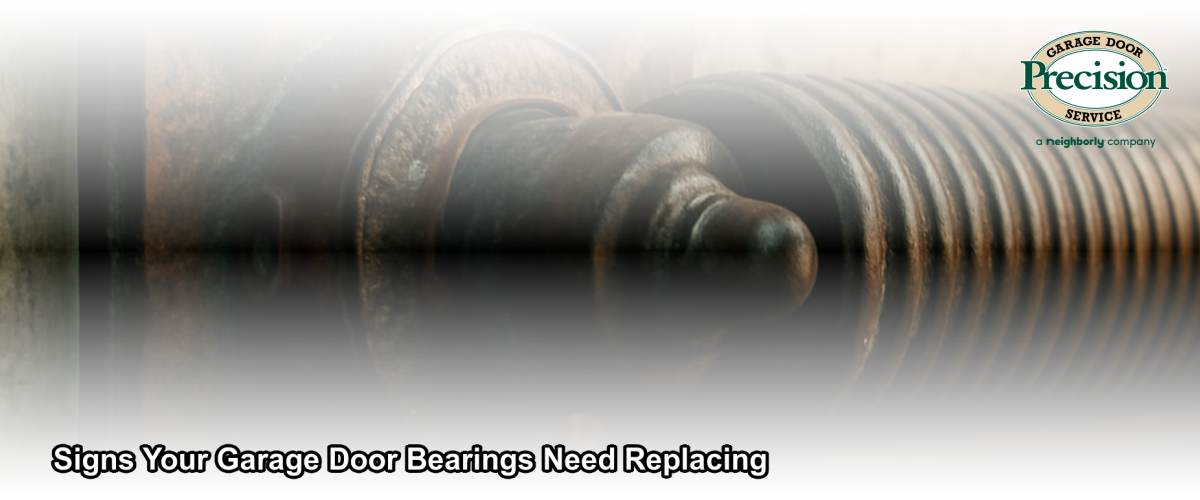

Visible rust on or around the bearing plate, dark grease streaks running down the wall bracket, or a shaft that wobbles slightly during operation are all clear visual indicators that your bearings are due for replacement. In some cases, you will see the bearing plate itself crack or deform under the stress of a failed bearing race.
Stand inside your garage with the door moving and watch the shaft at the center and end bracket positions. Any lateral wobble or vibration in the shaft — rather than clean, centered rotation — signals bearing wear. A bearing that has failed completely may allow the shaft to visibly sag or shift under the spring tension load.
How does Chicago’s climate accelerate bearing wear?
Chicago’s freeze-thaw cycles are particularly hard on garage door hardware because repeated thermal expansion and contraction works lubricant out of bearing races and invites moisture that leads to rust. Temperatures that regularly drop below 0°F in winter cause metal-on-metal components to lose their protective grease film faster than in milder climates.
Homes in areas exposed to lake-effect humidity — especially on the North Side and near the lakefront — tend to see accelerated corrosion on bearing plates and spring shafts. If your garage is unheated or poorly insulated, bearings typically reach end-of-life faster than the manufacturer’s rated cycle count would suggest. This is why Precision Garage Door Chicago recommends a seasonal inspection every fall before temperatures drop, not just when a problem becomes obvious.
Can a bad bearing cause other garage door problems?
Yes — a worn or seized bearing is one of the most common root causes of uneven door movement, cable drum misalignment, and premature torsion spring failure. When a bearing fails on one side, the shaft cannot rotate evenly, which causes one cable drum to wind at a different rate than the other, pulling the door off-track or creating dangerous cable slack.
Left unaddressed, a bad bearing can transfer excess load onto the spring coils directly, reducing spring life by a significant margin. In the worst cases, a fully seized bearing causes the spring to snap under the added rotational resistance — a sudden failure that can be dangerous and typically requires emergency service. As covered in our guide to garage door spring replacement, spring failures are almost always more expensive to resolve than the upstream components that contributed to them.
Should I replace garage door bearings myself or hire a professional?
Bearing replacement on a garage door is not a safe DIY task for most homeowners because it requires releasing torsion spring tension — a procedure that involves stored energy capable of causing serious injury if the spring is not properly wound down by someone with the right tools and training. IDA Certified Technicians at Precision Garage Door Chicago are trained specifically in safe spring-tension management before any shaft or bearing work begins.
Beyond safety, proper bearing replacement involves matching the bearing ID and OD dimensions to the existing shaft diameter — typically 1-inch shafts on standard residential doors — and re-lubricating and re-tensioning the spring assembly correctly after installation. An improperly tensioned spring after a DIY bearing swap is a common cause of return service calls and secondary hardware failures.
How much does it cost to replace garage door bearings in Chicago?
Bearing replacement cost in Chicago varies based on how many bearing plates need replacement and whether secondary components — such as cables, drums, or springs — have sustained wear damage in the process. In most straightforward cases, the job involves parts and labor combined, with the bearing plates themselves being relatively low-cost components; the labor for safely releasing and re-tensioning spring tension is where most of the service cost is concentrated.
If you are also due for a cable or spring replacement at the same time, bundling those repairs during a single visit is typically more cost-effective than scheduling separate appointments. See our full pricing guide to garage door spring and cable repair for a detailed breakdown of what to expect. Precision Garage Door Chicago provides upfront, itemized quotes before any work begins — no surprise charges after the job is done.
What is included in a bearing replacement service call?
When Precision Garage Door Chicago performs a bearing replacement, the service includes a full inspection of the torsion spring shaft, drums, cables, and bracket hardware — not just the bearing plates in isolation. This matters because bearings rarely fail in a vacuum; adjacent components often show wear that, if missed, leads to another service call within months.
The technician will safely release spring tension, remove and replace the worn bearing plates, re-lubricate the shaft, re-tension the springs to the door’s correct weight specification, and run a full balance test before leaving. A properly balanced door should hold position when released at the halfway-open point with no drift up or down. Any door that fails that test leaves the job site corrected, not just repaired on paper.
How often should garage door bearings be inspected in Chicago?
Garage door bearings should be inspected at least once per year, with a strong preference for a fall inspection before Chicago’s winter puts maximum stress on the system. Doors that see four or more cycles per day — common in households where the garage is the primary entry point — should be inspected every six months.
During any inspection, a technician will apply a lithium-based or silicone lubricant to the bearing plates and shaft, which is one of the simplest things you can do to extend bearing life between professional visits. Avoid WD-40 on bearings — it is a solvent, not a lubricant, and strips the protective grease film rather than supplementing it. Our maintenance checklist covers a full lubrication schedule for every moving part on a standard residential garage door.
This guide was prepared by IDA Certified Technicians at Precision Garage Door Chicago, serving Chicago, IL and the surrounding metro area.
Frequently Asked Questions
What are the first signs that garage door bearings are going bad?
The earliest signs are a grinding or metal-on-metal scraping noise during door operation, along with visible rust or dark grease streaks around the bearing plate. A shaft that wobbles or vibrates instead of rotating cleanly is a strong secondary indicator.
Is it safe to use my garage door if the bearings are worn?
Continued use with worn bearings risks cable misalignment, drum damage, and sudden torsion spring failure — all of which are more expensive and potentially more dangerous than the original bearing issue. Short-term use while scheduling a repair is generally acceptable, but the door should not be ignored once symptoms appear.
How long do garage door bearings typically last?
Bearings on a standard residential garage door are typically rated for 10,000 cycles or more, but Chicago’s freeze-thaw cycles and humidity can shorten that lifespan — especially in unheated garages where lubrication degrades faster. Annual inspections and proper lubrication are the most effective ways to reach or exceed the rated life.
Can I lubricate garage door bearings myself to extend their life?
Yes — applying a lithium-based or silicone spray lubricant to the bearing plates two to three times per year helps maintain the protective film and slow wear. Avoid WD-40, which acts as a solvent and strips existing grease rather than adding lubrication.
Do I need to replace all the bearings at once, or just the bad one?
IDA Certified Technicians at Precision Garage Door Chicago generally recommend replacing all bearing plates during the same visit if one has failed, because the remaining bearings have accumulated the same cycle count and are likely to follow within a short period — making a full replacement more cost-effective than staged individual repairs.
